59+ LPS

$ 220

Know more about this product
Our 59+ LPS is different to other brands of 59 humbuckers, we think it's vastly superior. You might think it's pricey but considering it outperforms and sounds better than more expensive vintage humbuckers and most '59 originals it's actually a bargain.  Listen to the above YouTube demo and read the Report Cards (Tab on the right at top ).  Why gamble and spend thousands for a genuine original when you can be certain and buy a Kinman 59+ LPS ?

59+ LPS

$220

Order Form with

Order Customization

Product Info

Brett Kingman (ace YouTube demo artist) told us “The 59+ LPS has some of the best cleans I’ve ever heard and that’s why I love them so much. But they are very versatile too and are right at home in country, funk, jazz, jangly as well as rock n roll and the heavier guitar arts”.

Andrew Farnham (ace guitar player) told us “I’ve got the 59+LPS in one of my hollow-body guitar’s and they’re definitely the best set of humbuckers I’ve ever owned. Amazing dynamics and touch responsiveness. Still definitely a humbucker but with lots of nice single coil characteristics blended in“.

Need we say more?

Comes in two versions ….

  • 59+ LPS Lite with the ideal 47.5mm pole spread for the neck position (another Kinman exclusive)
  • 59+ LPS with 50mm pole spread for the bridge position

Kinman does not skimp on parts cost and “so be it” if we find we can do better with more parts.

  • Number of parts in our 59+ LPS pickup: 38 to 43, depending on which version.
  • Number of parts in regular humbucker: 25

Patent number 8,791,351

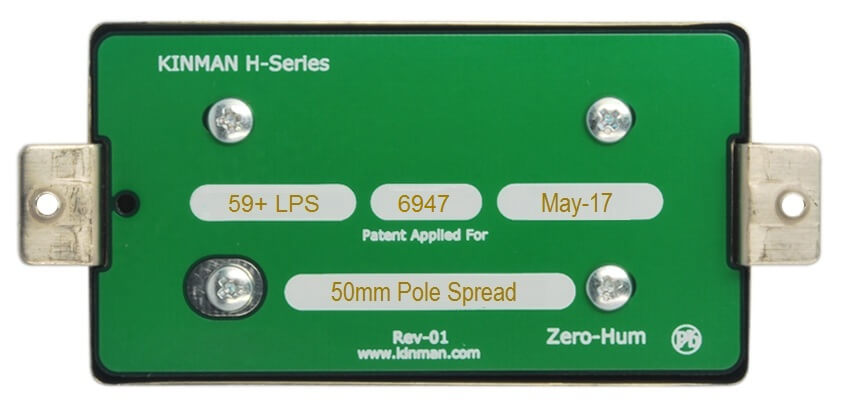

Laser engraved identity info so you’ll always know.

Direct replacement for conventional humbuckers such as Gibson, Duncan etc. Some guitars (a few Ibanez, some Fender Strat and one or two others) have pickups with excessively rounded corners. If a pickguard is fitted (for example Fender Strat Deluxe) a small modification to the pickguard opening to accommodate a Kinman humbucker is well worth the effort since Kinman’s sound so much better. The cavity in the body is suitable as it is.

Hook-up cable

  • Standard is 2 conductor shielded with robusted ends
  • ESSC splitting version has one two conductor and one 3 conductor shielded cable with robust ends.
  • See our 2n1 Multi-Sound for splitting to ultimate single coil sound.
  • 380mm / 15″ long.

Connection means available

  • Bare wires for soldering.
  • Kinman connectors for plugging into any Kinman Goodbye-Soldering Harness.- including the 2 pickup KHP-90 harness for Les Paul style guitars.
  • Gibson 2 wire and 5 wire Quick Connect plug for Gibson circuit board harness.



Pot & Capacitor values

  • Best with 500k Ohm for Volume & Tone for both full and split single coil modes. Many Gibson’s have 300k which makes a darker, less dynamic sound so it’s best to change them.
  • Normal tone cap value of 0.022µF in 63 ~ 100 volt Polyester. Smaller value lessen the severity of Treble cut, higher values increase it.

Output Polarity:

  • in-phase with Gibson and Copy humbuckers
  • in-phase with all other Kinman pickups
  • opposite phase to Fender

Pole spreads

  • 47.5mm (introduced March 2021) Perfect string-over-pole alignment for Neck position for Gibsons and similar guitars with 52mm bridge.
  • 50mm for all bridge positions except the bridge position of a Strat that has a vintage 6 point bridge and saddle spread of 56.4mm
  • 53mm for bridge position in Strats with a genuine vintage 6 point bridge, saddle spread of 56.4mm.

Mounting options

  • conventional 2 screws mounting, standard American thread, Philips x drive.
  • also available with 3 screw mounting (you specify the distance between the two top screws).
  • mounting screws and silicon rubber tube springs included.

Covers and colors

  • Closed and Open top Natural Nickel-Silver, Kin-Chrome and Gold plated covers. Our exclusive Kin-Chrome covers have Zero impact on sonic performance (a world first)
  • Kinman humbuckers are engineered differently without the molded plastic bobbins that all other humbuckers have. Removing covers will not reveal bobbins and we advise against it.
