Budget P90 Soapbar

Name: Budget P90 Soapbar
SKU: 14209
Availability: OutOfStock

$ 149

Know more about this product

New budget priced Zero-Hum Soapbar P90-Bucker

Genuine single coil sounds far superior to Sidewinders and 3 Coil humbuckers Our new affordable Zero-Hum (noiseless) Offset Soapbar P90-Bucker & Twang-Bucker .... with their dynamic 100% single coil sound. In stock ready to ship. Contact us to place your order.

Budget P90 Soapbar

$149

Order Form with

Order Customization

Out of stock

Product Info

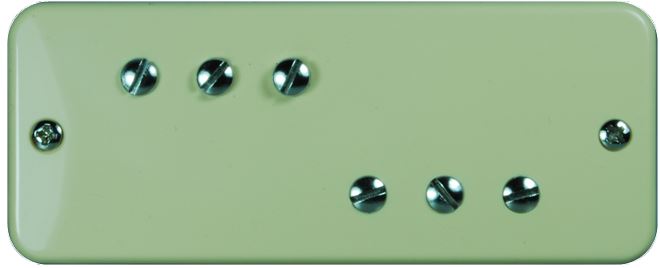

This is our excellent new high-performing Offset Soapbar P90-Bucker, with it’s dynamic 100% single coil sound it sounds heaps better than our non-event Sidewinder and, at $149 it’s not expensive considering it is an excellent sounding noiseless P-90.

It is no deeper than a regular P-90 and will definitely fit all P-90 cavities, absolutely no routing needed. It sounds exactly like our 100% single coil sounding P90-Bucker which is a standard sized humbucker and that’s really saying something. Also available in our Twang-Bucker design with Alnico rod magnets.

Also, this new Offset Soapbar is available with 53mm pole spacing …. as well as 50mm and 47.5mm pole spacings that provides perfect string-over-pole alignment regardless of bridge spacing. We supply the appropriate pole spacing according to the bridge specified in your order.

Attributes …

Beyond excellent super dynamics, satisfying attack, lush bottom end, beautiful tone and is highly versatile.
Like our regular P90-Bucker it’s available as a Standard, Clean Bridge, C&B Neck as well as the Heavy variations.
Zero-Hum (noiseless) 100% single coil sound.
Optional 2, or 3 mounting screws for precise control over height, tilt and slant adjustments for optimum performance.
Optional Kinman Universal Soapbar cover for Gibson guitars -or- Korean Generic cover
Optional Non-Magnetic mounting plate is designed to accept 2 or 3 mounting screws.

Technical information and options

Optional two or three mounting screws for control over height, tilt and slant adjustments for optimum performance.
Optional Kinman Universal Soapbar cover for Gibson guitars -or- Korean Generic cover for other brands
Optional Non-Magnetic mounting plate is designed to accept 2 or 3 mounting screws.

Installation

Consider including our optional non-magnetic mounting plate kit, it makes install fast n easy because you don’t have to drill holes in the precise position for the pickups mounting screws in cavity floors. Do NOT use original Gibson mounting plates, being magnetic will dramatically compromise the hum cancelling ability of the P-90 Hx.

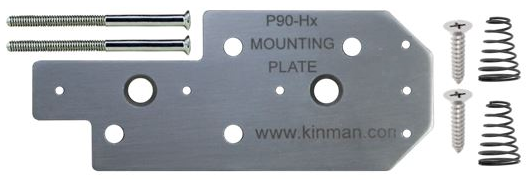

Kinman Soapbar non-magnetic Mounting Plate Kit

Optional with 3 mounting screws for precise adjustment control over height, tilt and slant

Connections

Bare wires for soldering.
Kinman connectors for plugging into a Kinman Strat, Tele or KHP-90 No-Soldering harness.
Gibson 2 wire & 5 wire Quick Connect circuit board connectors shown below.

Output Polarity:

in-phase with all other Kinman pickups
in-phase with Gibson and Copy humbuckers
opposite phase to Fender Strat
Fender pickups have opposite output polarity so consider Kinman’s Strat models which have same output polarity.

Pot & Capacitor values

Best with 250k Ohm for Volume. Many Gibson’s have 300k which is OK too. 500k causes ragged trebles..
Normal Tone pot is 500k however to maximize clarity use a No-Load or alternatively a 1 Meg Ohm tone pot.
Normal tone cap value of 0.022µF in 63 ~ 100 volt Polyester. Smaller value lessen the severity of Treble cut, higher values increase it.

Cavity depth

No need to deepen the pickup cavity in ANY guitar that has normal cavities for P-90’s.

Pole spreads

53mm pole spread for bridge position of Stratocasters or with any bridge having saddle spread of 54+mm.
50mm for Gibsons or bridges having saddle spread of 50mm ~ 54mm.
47.5mm for neck position of Gibsons and Epiphones. Assures perfect string-over-magnet alignment.

Covers

Kinman Universal Soapbar covers in genuine Gibson Cream, Warm White, Aged White, Black and Nickel-Silver suitable for all 3 pole spreads.
Generic Korean covers
- 53mm pole spread for bridge position in Stratocasters Cream and Black only.
- 50mm pole spread available in White, Black, Cream and Chrome.
- 47.5mm pole spreads available in Black & Cream only.

Not suitable for Dog-Ear covers

Hook-up cable

The Budget P90-Bucker Soapbar has 2 conductor cable. 3 conductor optional.
Length is 380mm / 15″.

Mounting hardware

2 or 3 Long 3-48 UNC mounting screws, Phillips drive.
2 or 3 Silicon Rubber tube springs.
handy drill guide template for positioning the screw holes in the virgin floor of the pickup cavity of a project guitar or guitars with freshly deepened cavities.
OPTIONAL extra: Soap-bar cavity mounting plate, including all screws and springs. It’s non-magnetic and won’t interfere with hum cancellation.
