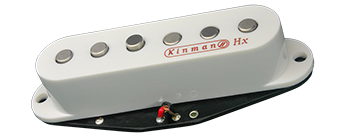

Kick-in-the-Arse (a new kind of 'H' in HSS)

Do you love a humbucker or P-90 sound in the bridge position but hate the idea of modifying your precious Stratocaster? Well, here is your love/hate solution!!! Our impressive Kick-in-the-Arse that looks like a regular Strat pickup. No need to drastically modify anything ,,, just chuck it in and get screaming P-90 / Humbucker sounds from your Strat. Yes, your guitar will deliver a real kick in the arse and you'll walk the line between heaven and hell. News flash Apr-2021: Now with our new Synergy baseplate that allows switching off Hum Cancelling as well as switching to 'Synergy' mode.

Kick in the Arse

$190

Order Form with

Order Customization

Product Info

Sonic performance:

Standard version sounds more like a P-90 and is intended for bridge position but also rips in the neck position: All the natural dirty growl, searing fluid highs, loudness and tone you expect from a quality P-90 and then some. Roll the volume down and it turns all sweet and pretty. There are customers who prefer a 250k volume pot to tame it’s wild side a little bit but we think it’s best with a 500k volume pot that maximizes it’s dynamic punch and searing highs. It moves a lotta air.
The new Kick Heavy is a new bridge variation for smoother heavily distorted Heavy Metal. In response to suggestions from customers to further distance it from single coil sound we’ve tamed the pick-click of the ferocious highs and softened the piano mid-tones of the low wound strings giving it a more conventional rounded sound of a humbucker . The Heavy has the same 2.8 Q factor as a regular bucker. To go one step even further use a 250k volume pot instead of 500k that we recommend.
With maple necks naturally the standard variant sounds more like a P-90 crossed with a humbucker and that’s what our PAF Plus sounds like anyway. Customers say it’s a very good thing.
Outstanding aspects: Humbuckers typically measure 4 Henrys of Inductance (the measure of magneto electrical efficiency) and Q Factor of around 2.8, this little powerhouse measures a whopping 5.6 Henrys and 8.1K Ohms with a Q factor of 3.4 and that means it’s a kick arse highly dynamic pickup ,,, and like our full sized humbuckers it’s got Zero-Hum … whoopeeee!!!

One customer reports they are a little bit louder then a Duncan ‘Pearly Gates’ humbucker but he prefers our Kick-in-the-Arse.

You’ll transform your triple ‘S’ Stratocaster to a ‘HSS’ hero easily and won’t onlookers be wide-eyed when all hell breaks loose and you’re ripping with kick-arse growling n screaming humbucker sounds without using pedals … and without Hum …. from a Strat!!! Yup, you’re gonna get questions.

Does a set of 3 make sense? You betcha it does, the position 2 and 4 sounds are unique and so usable, they still growl when the wounds are struck but with more mellow, chimey plain string sound. The middle is far from redundant, it’s got as much charisma as the bridge and neck. A set of 3 might just be the best humbucker sound you’ve ever heard.

Is it good for clean sounds? the Kick sounds very nice in clean mode. But after all it has the power and sound of a Kinman PAF Plus humbucker and it’s a gutsy pickup and consequently will push the amp into distortion far easier when adjusted close to the strings than, say any other Strat pickup will. Like any humbucker, the volume must be kept low to maintain a clean sound. Also adjusting the pickup away from the strings somewhat lowers the output and intensity of attack making it more conducive to clean sounds for soft n pretty passages in Jazz, Indie, balads and the like. That is the heaven side of the line.

Feel the Kick, it’s available now …. click the BUY button and receive your awesome little powerhouse within 2 weeks.

Now available in Standard 52.4 mm, Intermediate 51mm & Narrow 49.5mm magnet spreads. Pot value recommendations are in the technical section beside this Tab.



US Patents 5,668,520 6,103,986 8,791,351

To cancel hum we add a sonically transparent 600 Ohm Hum Sensor coil to the bottom of the pickup which is designed with a low profile coil so it doesn’t make the pickup too tall. This Hum Sensor is extremely efficient and uses big wire and low turns count to minimize capacitance so it has no impact on the string signal as it passes through. The Hum Sensor is so transparent it can be disconnected without causing any difference to the sound of the pickup (except it will have hum of course). Additionally, the low profile Hum Sensing bobbin allows us to make a taller string sensor which in turn and in combination with a Patented magnetic invention allows the pickup to produce non-aged sound. That is ….. bright and sparkly with varying degrees of mid scoop just like the best recently manufactured Strat pickups.

Kinman, like no other noiseless Strat pickup, has broken through the compression / transparency barrier. Now you can compare Apples with hum to Apples without hum. Introducing the 2nd generation hum cancelling Stratocaster pickups, the world’s first non-aged hum-cancelling Strat pickup.

This new model represents a major milestone in the evolution of Fender type pickups as it has taken about 26 years of inventive and innovative thinking to achieve. The Kinman P-90 Hx and this new model re-affirms Kinman as the King of noiseless.

Height adjustment: With the 12th fret closed the neck pickup gap between top of magnet and bottom of E-6th should be 2.2mm and for the E-1st it should be 3mm. This is our experience and a good starting point but might need to be tempered somewhat for different amps, strings and guitar responses.

Mixing and matching with other Strat pickups: Some players will love the Impersonator MV in all 3 positions (bridge, middle and neck) to get nicely balanced authentic vintage sounds from all 5 positions. The new Texas Jalapeno, surprisingly, has higher output, and makes a good companion bridge pickup and pos 2 is reasonable authentic Knopfler-esque. But if you prefer an even hotter bridge pickup the Big-Nine-O is powerful, sweet, thick and loud, a perfect companion at the bridge if growl is your thing. However position 2 sound will not produce authentic Knopfler-esque sound but will sound good anyway with a lot of retained attack.

How does it compare to the Traditional Mk-III set? The Trad Mk-IV produces aged sound which means more midrange content (less scooped), less brilliant highs and compresses when picked hard. The Impersonator MV has non-aged sound and therefore the midrange is more scooped with brilliant bitey highs and, like a new pickup, does not compress when picked hard.

Covers

  • Standard Kinman cover without height extender bushings.
  • Available in White, Black, Aged White.
  • With and without Kinman logo.
  • Can be tinted with food stains such as Coffee and Tea.
  • Generic covers will not fit Kinman Strat pickups. We sell replacement covers in three colors.

Connection means available

  • Bare wires for soldering.
  • Kinman connectors for plugging into any Kinman Goodbye-Soldering Harness.

Dimensions

  • click for dimensions page

Pot & Capacitor values

  • Best with 250k Ohm (measured minimum) volume pot. Less punch and more bright with 500k.
  • Tone pot is usually the same value as the volume but for a little more top end brightness can be 500k, 1meg or a No-Load.
  • Stock pots can actually measure as low as 175k. Pots in our Goodbye-Soldering Harness are guaranteed to measure no less that 250k.
  • Normal tone cap value of 0.022uF, 63 ~ 100 volt Polyester. Smaller uF value lessen the severity of Treble cut, higher values increase it.
  • The voltage rating of Caps is not important but 63 ~ 100 volt have thicker lead wires that result in a neater job.

Magnet spreads we normally ship (ensures magnets align with the strings in each position)

  • Narrow 49.5mm – Neck
  • Intermediate 51mm – Middle
  • Standard 52.5mm – Bridge
  • Option to specify your magnet spreads of sets and singles in our ‘After-Payment’ Additional Questions‘ email we send you.

Magnet Staggers

  • Normal improved Stagger to suit 7″ ~ 14 inch uniform radius fretboards including USA Custom Guitar Compound 7-1/4″ ~ 9-1/2
  • Flat Stagger 14″ ~ 20″ for specific compound radius fretboards (Warmoth 10 ~ 16 inch and Post 2010 Fender Deluxe 9 ~ 14″)
  • Option to choose your magnet stagger for sets and singles in our ‘After-Payment Additional Questions‘ email we send you.

Hook-up cable

  • 2 conductor shielded is standard.
  • Middle pickups when supplied with a K9 or neck pickup with a TK4 harness have 3 conductor shielded.
  • 3 conductor by request with Order.
  • Custom lengths by request with Order.

Output Polarity:

  • in-phase with Gibson and Copy humbuckers
  • in-phase with all other Kinman pickups
  • opposite phase to Fender Strat (match phase with 3 Conductor hook-up cable)

Mounting hardware included

  • 2 Pan head mounting screws.
  • 2 Silicon Rubber tube springs.

We highly recommend consulting the Install Guide in the Technical section even if you think you know it all. Kinmans’ require specialized knowledge and sometimes there is updated info. There is also a handy wiring diagram available.

We also highly recommend consulting the Adjust & Set-up page in the Technical section so you get the best out of your Kinman pickups.

*Stratocaster and Strat are a Trade Marks of Fender Musical Instrument Corp. Kinman is not connected to Fender.

** Alnico-K is a unique proprietary rod magnet developed by Kinman in 1985. It has 40% less string pull than Alnico-5 so sustain is longer and there is much less clatter from string crash and no Strat-itis string warble.
